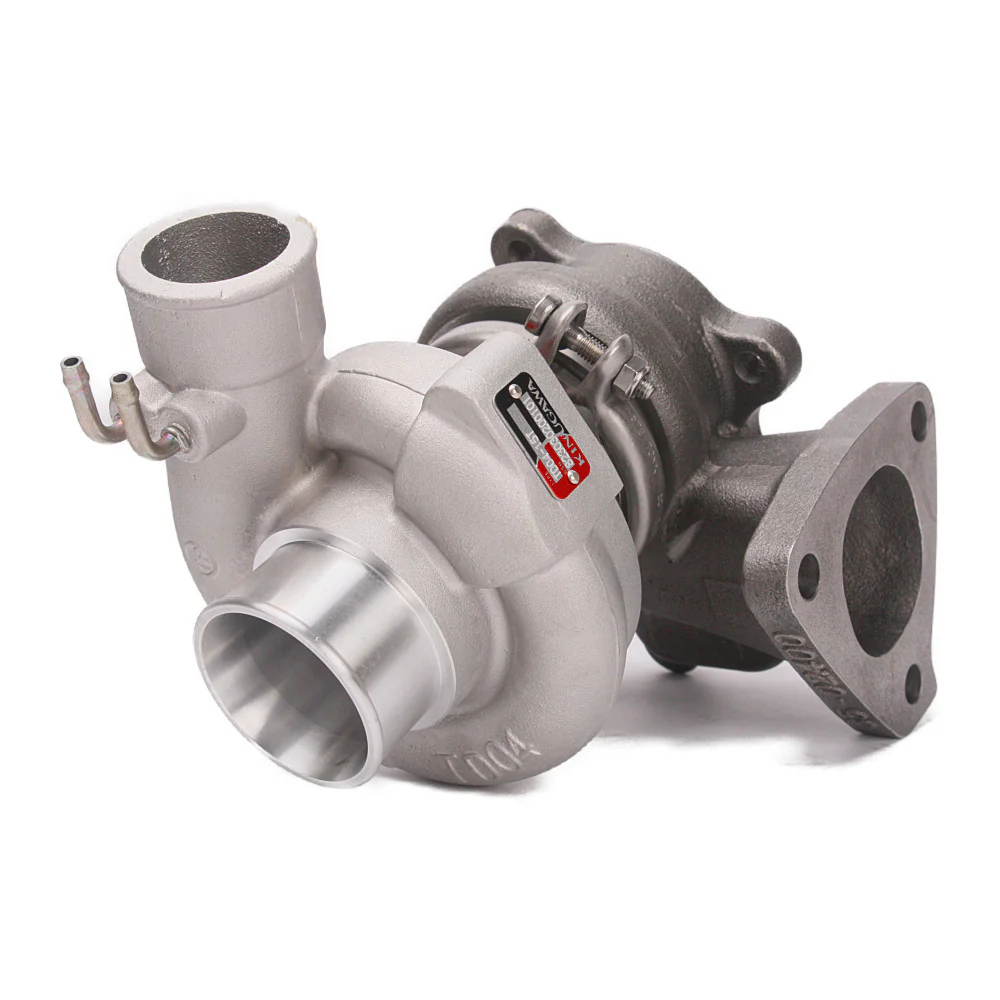

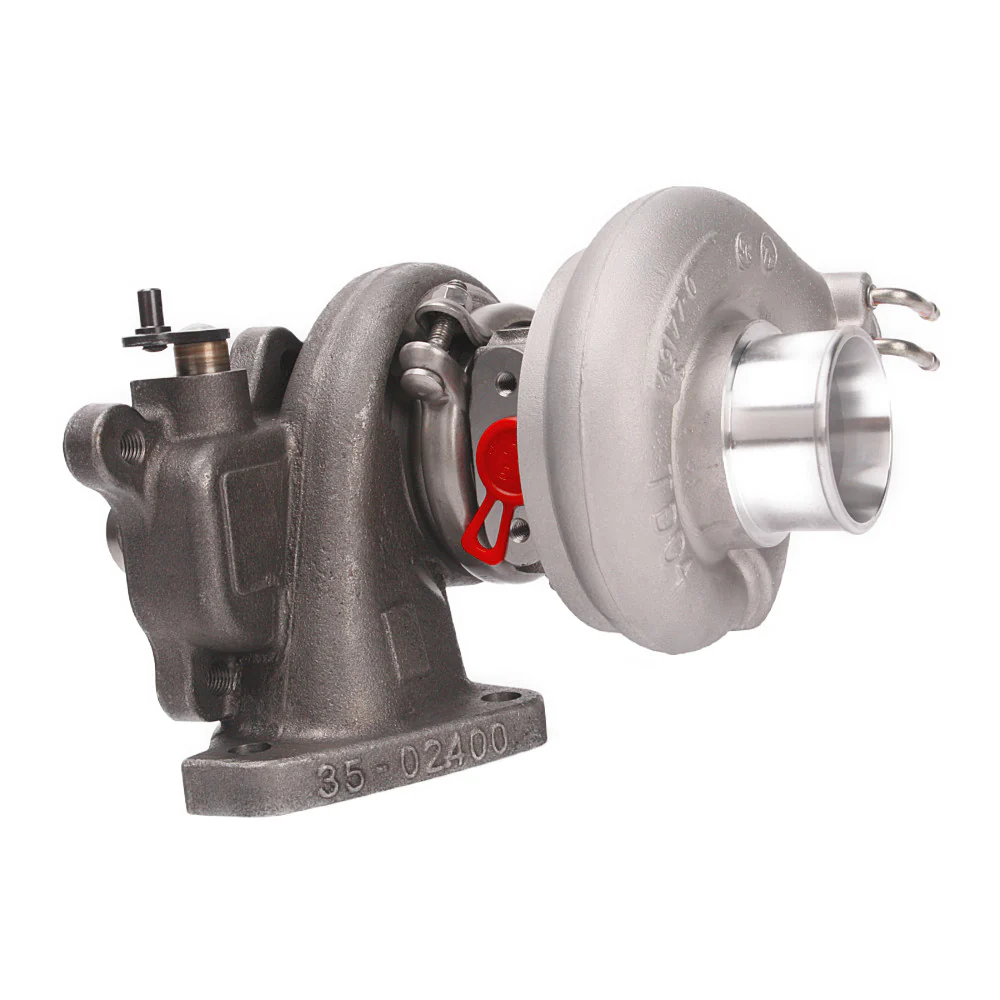

Kinugawa Turbo TD04L-13T 5-Bolt Upgrade for Mitsubishi 4D56T 2.5L Pajero Delica Triton
Application
- Mitsubishi 4D56T turbocharger with 5 bolt turbine outlet housing on 2.5L diesel Delica, Pajero L200, L300, L400
- TD04: 49177-02500, 49177-02501, 49177-02502, 49177-02503, 49177-02510, 49177-02511, 49177-02512, 49177-02513, 49177-02520, 49177-02521, 49177-02530, 49177-02531, 49177-02540, 49177-02551...all 49177-025xx turbo with 5 bolt outlet
- TF035HM: 49135-02100, 49135-49135-02110, 49135-02200, 49135-02210, 49135-02220, 49135-02230, 49135-02240
- 1992-1996 Mitsubishi L 200 2,5L TD 4WD (K_4T) with 4D56 Engine
- 1988-1996 Mitsubishi L 300 2,5L TD 4WD (P25W,P25V) with 4D56 Engine
- 1986-1989 Mitsubishi Pajero I 2.5L TD with 4D56 Engine
- 1989-1990 Mitsubishi Pajero I 2.5 TD with 4D56 Engine
- 1990-1991 Mitsubishi Pajero II 2.5 TD with 4D56 Engine
- 30~35% horsepower and torque increased.
- Mitsubishi 4D56T turbocharger with 5 bolt turbine outlet housing on 2.5L diesel Delica, Pajero L200, L300, L400
- TD04: 49177-02500, 49177-02501, 49177-02502, 49177-02503, 49177-02510, 49177-02511, 49177-02512, 49177-02513, 49177-02520, 49177-02521, 49177-02530, 49177-02531, 49177-02540, 49177-02551...all 49177-025xx turbo with 5 bolt outlet
- TF035HM: 49135-02100, 49135-49135-02110, 49135-02200, 49135-02210, 49135-02220, 49135-02230, 49135-02240
- 1992-1996 Mitsubishi L 200 2,5L TD 4WD (K_4T) with 4D56 Engine
- 1988-1996 Mitsubishi L 300 2,5L TD 4WD (P25W,P25V) with 4D56 Engine
- 1986-1989 Mitsubishi Pajero I 2.5L TD with 4D56 Engine
- 1989-1990 Mitsubishi Pajero I 2.5 TD with 4D56 Engine
- 1990-1991 Mitsubishi Pajero II 2.5 TD with 4D56 Engine
- 30~35% horsepower and torque increased.
Wheels Spec
- Compressor wheel: 40.7 / 56 mm (13T). The stock type is td04-09b 34.7/49.1 mm
(The 6+6 blades are better for low-end torque, and the 11+0 type is for top-end speed)
- Turbine wheel: 41.3 / 47.1 mm (TD04L). The stock type is 40 / 47.1 mm
(2 types available: STD, STS. Click here to learn more about STS technology.↗)
Compressor Housing
- Stock type
Turbine Housing
- Nozzle area: 4cm
- Inlet: 3 bolt
- Outlet: 5 bolt
- Wastegate: external gated
- Stock type
Turbine Housing
- Nozzle area: 4cm
- Inlet: 3 bolt
- Outlet: 5 bolt
- Wastegate: external gated
Bearing Type
- Journal Bearing
Cooling Type
- Oil / Oil-Water Cooling System

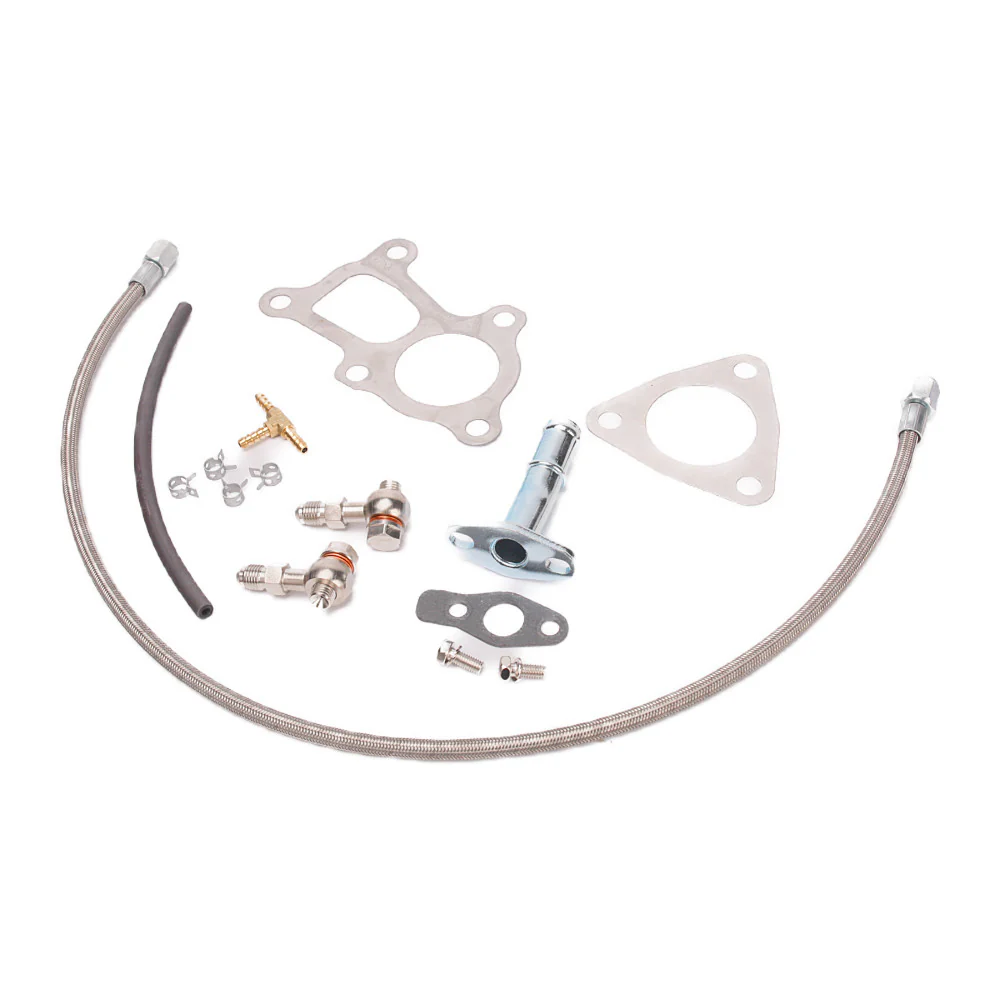

The set includes
- 1 x Turbocharger
- 1 x oil feed banjo bolt
- 1 x oil return gasket
- 1 x turbine gasket set in/outlet
- 1 x balance report with anti-counterfeit tag
Situation
- Brand New
- Balance from Schenk Germany
Provider
- Kinugawa Turbo Systems
Warranty
- For complete peace of mind, Kinugawa Turbo Systems offers a KINUGAWA TROUBLE-FREE WARRANTY for 1 year from the purchase date to the original purchaser. If, for any reason, your turbocharger/s fails or has an issue, you can return it to us for a free overhaul and recondition or replacement depending on availability or the turbo problem. You can be assured that KINUGAWA has covered you no matter the issue.
Select Compressor Wheel
Select Turbine Wheel
Select Cooling Type
From $290.15
Original: $829.00
-65%Kinugawa Turbo TD04L-13T 5-Bolt Upgrade for Mitsubishi 4D56T 2.5L Pajero Delica Triton—
$829.00
$290.15Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Application
- Mitsubishi 4D56T turbocharger with 5 bolt turbine outlet housing on 2.5L diesel Delica, Pajero L200, L300, L400
- TD04: 49177-02500, 49177-02501, 49177-02502, 49177-02503, 49177-02510, 49177-02511, 49177-02512, 49177-02513, 49177-02520, 49177-02521, 49177-02530, 49177-02531, 49177-02540, 49177-02551...all 49177-025xx turbo with 5 bolt outlet
- TF035HM: 49135-02100, 49135-49135-02110, 49135-02200, 49135-02210, 49135-02220, 49135-02230, 49135-02240
- 1992-1996 Mitsubishi L 200 2,5L TD 4WD (K_4T) with 4D56 Engine
- 1988-1996 Mitsubishi L 300 2,5L TD 4WD (P25W,P25V) with 4D56 Engine
- 1986-1989 Mitsubishi Pajero I 2.5L TD with 4D56 Engine
- 1989-1990 Mitsubishi Pajero I 2.5 TD with 4D56 Engine
- 1990-1991 Mitsubishi Pajero II 2.5 TD with 4D56 Engine
- 30~35% horsepower and torque increased.
- Mitsubishi 4D56T turbocharger with 5 bolt turbine outlet housing on 2.5L diesel Delica, Pajero L200, L300, L400
- TD04: 49177-02500, 49177-02501, 49177-02502, 49177-02503, 49177-02510, 49177-02511, 49177-02512, 49177-02513, 49177-02520, 49177-02521, 49177-02530, 49177-02531, 49177-02540, 49177-02551...all 49177-025xx turbo with 5 bolt outlet
- TF035HM: 49135-02100, 49135-49135-02110, 49135-02200, 49135-02210, 49135-02220, 49135-02230, 49135-02240
- 1992-1996 Mitsubishi L 200 2,5L TD 4WD (K_4T) with 4D56 Engine
- 1988-1996 Mitsubishi L 300 2,5L TD 4WD (P25W,P25V) with 4D56 Engine
- 1986-1989 Mitsubishi Pajero I 2.5L TD with 4D56 Engine
- 1989-1990 Mitsubishi Pajero I 2.5 TD with 4D56 Engine
- 1990-1991 Mitsubishi Pajero II 2.5 TD with 4D56 Engine
- 30~35% horsepower and torque increased.
Wheels Spec
- Compressor wheel: 40.7 / 56 mm (13T). The stock type is td04-09b 34.7/49.1 mm
(The 6+6 blades are better for low-end torque, and the 11+0 type is for top-end speed)
- Turbine wheel: 41.3 / 47.1 mm (TD04L). The stock type is 40 / 47.1 mm
(2 types available: STD, STS. Click here to learn more about STS technology.↗)
Compressor Housing
- Stock type
Turbine Housing
- Nozzle area: 4cm
- Inlet: 3 bolt
- Outlet: 5 bolt
- Wastegate: external gated
- Stock type
Turbine Housing
- Nozzle area: 4cm
- Inlet: 3 bolt
- Outlet: 5 bolt
- Wastegate: external gated
Bearing Type
- Journal Bearing
Cooling Type
- Oil / Oil-Water Cooling System
The set includes
- 1 x Turbocharger
- 1 x oil feed banjo bolt
- 1 x oil return gasket
- 1 x turbine gasket set in/outlet
- 1 x balance report with anti-counterfeit tag
Situation
- Brand New
- Balance from Schenk Germany
Provider
- Kinugawa Turbo Systems
Warranty
- For complete peace of mind, Kinugawa Turbo Systems offers a KINUGAWA TROUBLE-FREE WARRANTY for 1 year from the purchase date to the original purchaser. If, for any reason, your turbocharger/s fails or has an issue, you can return it to us for a free overhaul and recondition or replacement depending on availability or the turbo problem. You can be assured that KINUGAWA has covered you no matter the issue.
