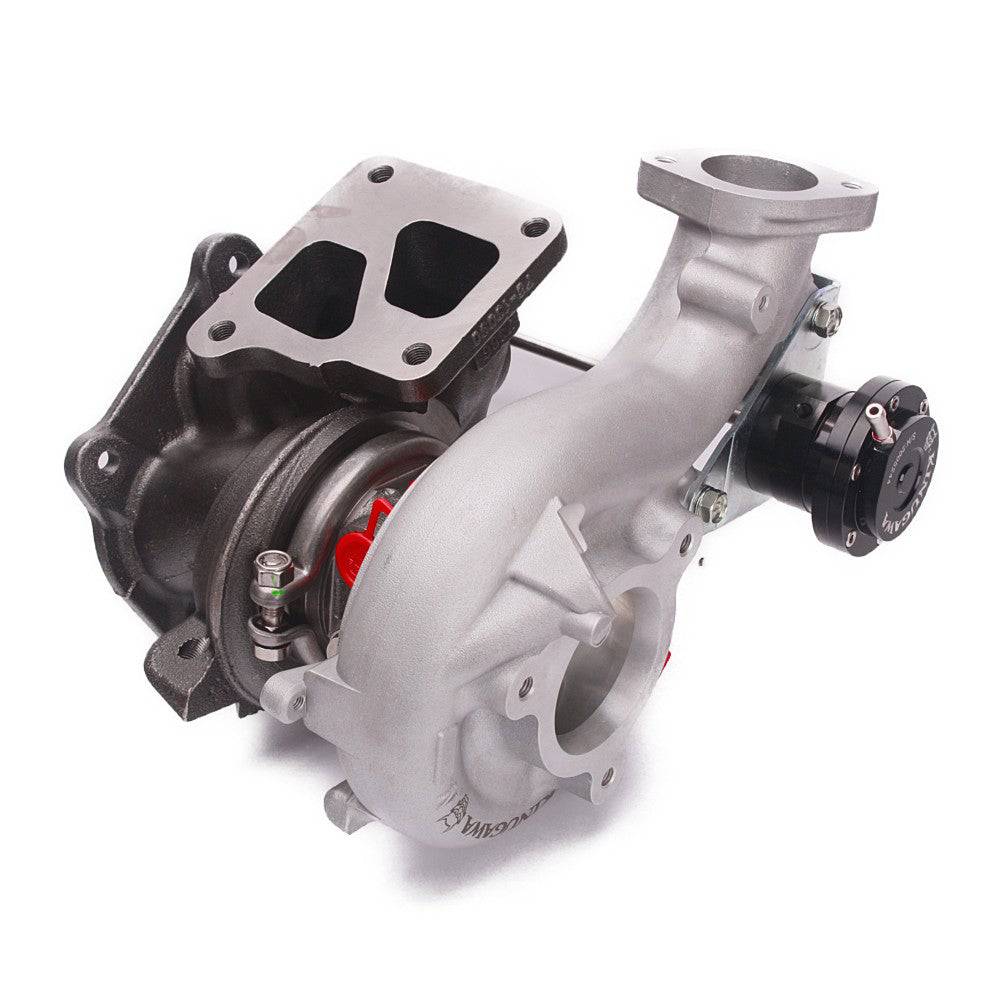

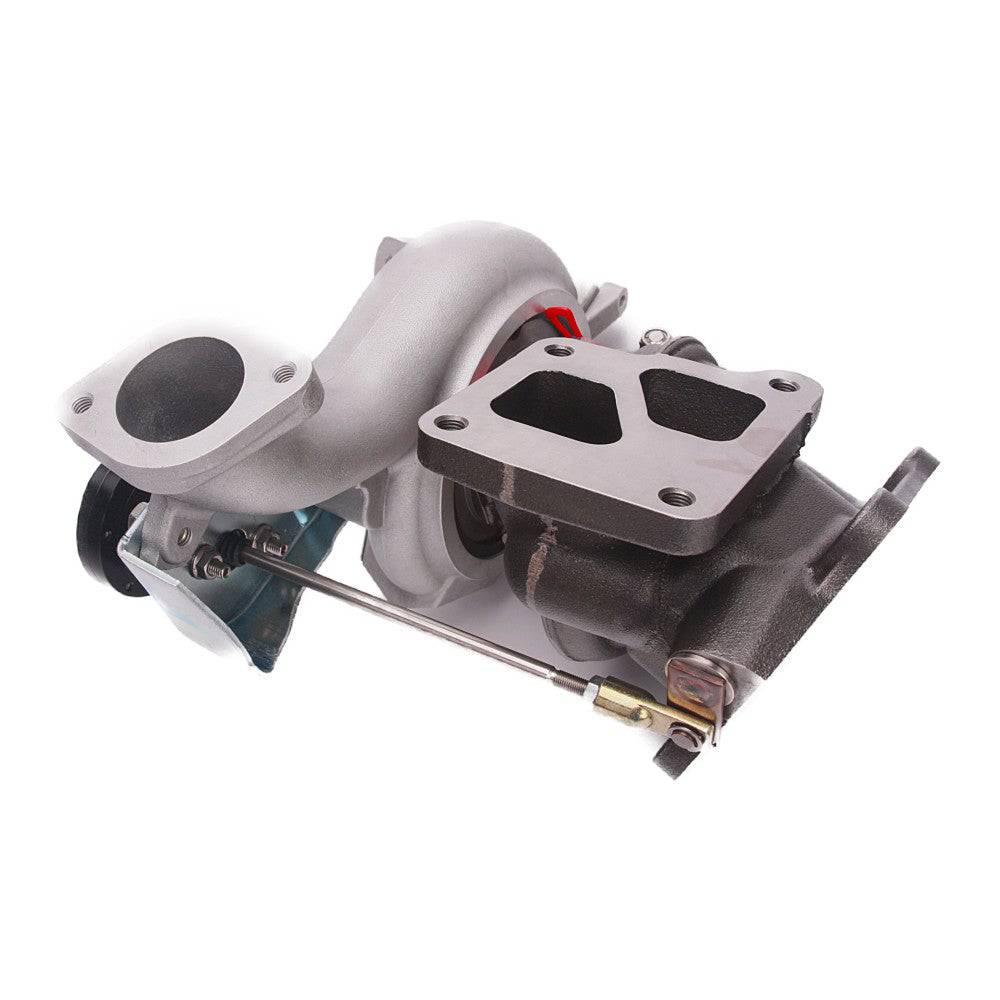

The Kinugawa TD06H-25G turbocharger is a direct bolt-on upgrade for the Mitsubishi Lancer EVO X (4B11T), featuring a 60.5/78mm billet compressor wheel, a large 58.8/67.2mm STS turbine wheel, and a Hi-Ni 22% thermal-resistant 12cm twin-scroll housing — engineered for serious high-RPM power, backed by Kinugawa's 1-Year Trouble-Free Warranty.

Application

• Mitsubishi 4B11T EVO 10 / EVO X
• Japanese models: RS, GST
• North American models: GSR, MR, MR Premium, MR Touring, SE, Final Edition
• UK models (Evolution X): GS, GSR SST, FQ-300, FQ-330, FQ-360, FQ-400, FQ400 MR

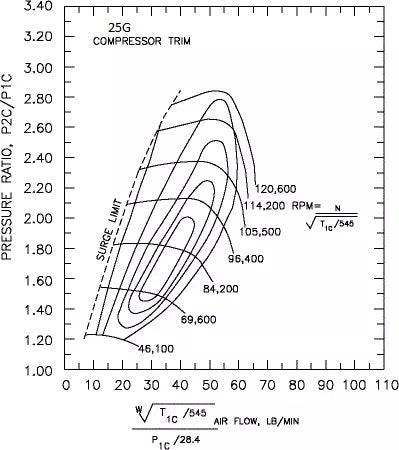

Maximum power figures are calculated from the compressor map choke flow (total turbo capability) and represent potential flywheel power. Actual results depend on your vehicle's modifications and tune/calibration.

Wheel Specifications

• Compressor wheel: 60.5 / 78 mm — 6+6 blades for low-end torque | 11+0 blades for top-end speed
• Turbine wheel: 58.8 / 67.2 mm — 2 types available: STD, STS. Learn more about STS technology ↗

Housing Specifications

Compressor Housing

• Inlet: Stock 3-bolt
• Outlet: Stock 2-bolt
• Big A/R stock location for maximum airflow

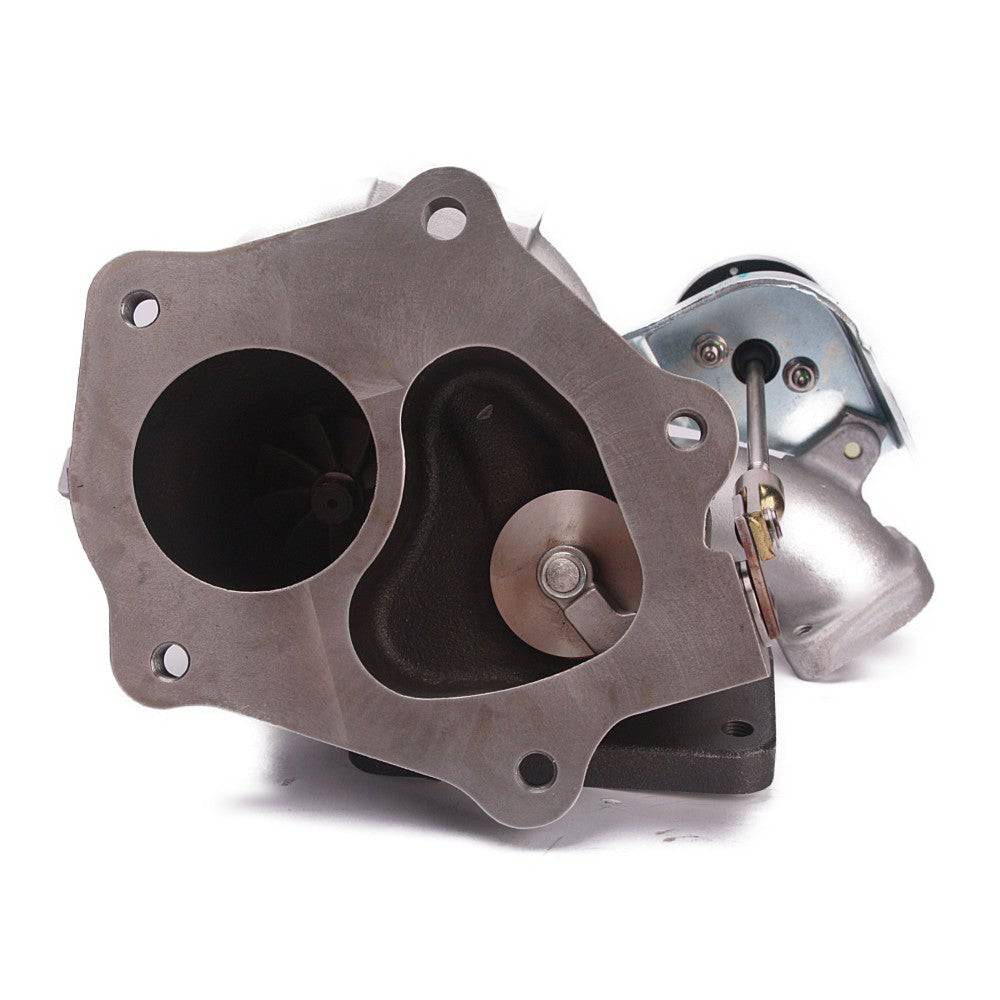

Turbine Housing

• Nozzle area: 12 cm
• Inlet: Mitsubishi twin scroll
• Outlet: Mitsubishi 5-bolt
• Wastegate: Internal gated
• Hi-Ni 22% thermal resistance material — endures higher temperatures

Bearing Type

Journal Bearing with 360 Performance Thrust Bearing Kit — large thrust rings and flingers for better turbine shaft axial impaction.

Cooling

Oil and water cooling

Actuator Pressure

• Default: 1.0 bar / 14.7 PSI
• Custom options: 0.3, 0.5, 0.8, 1.2, 1.5, 1.7, or 2.0 bar — add a note at checkout or contact us.

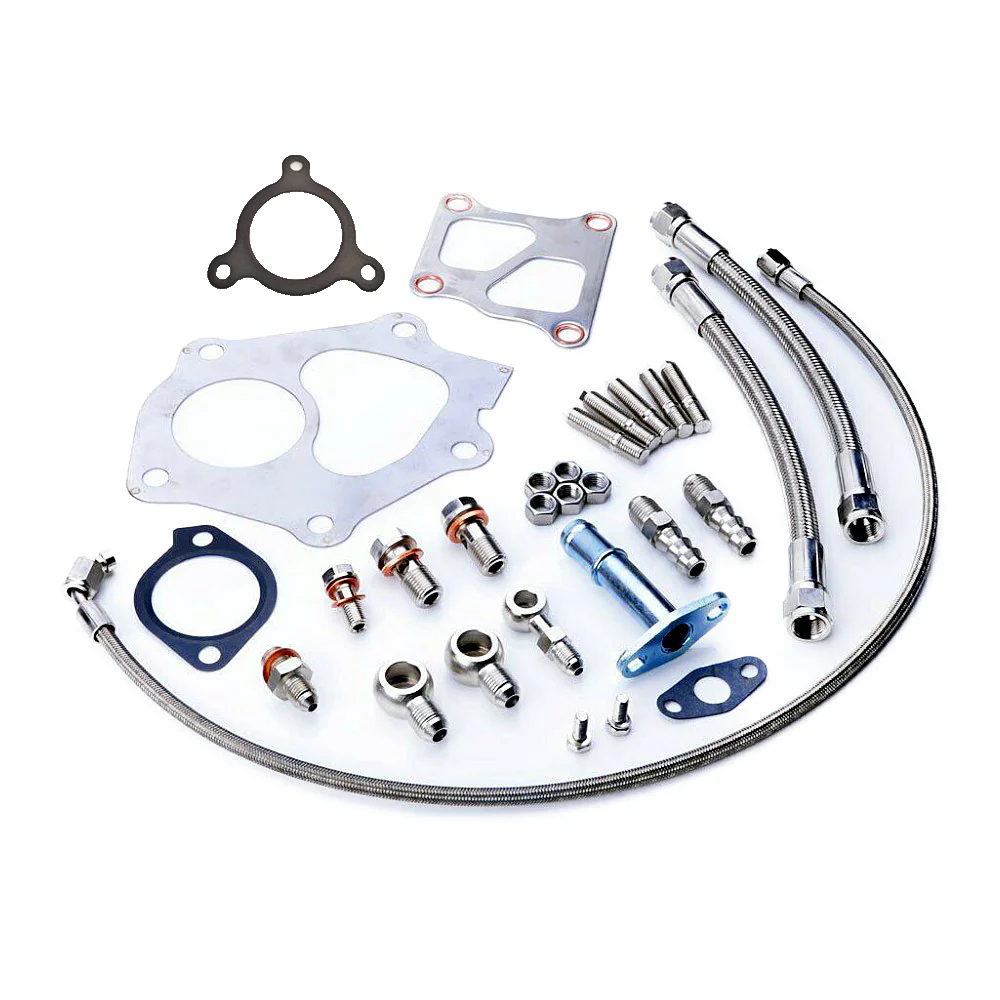

What's Included

• 1 × Turbocharger
• 1 × Oil set for oil supply
• 1 × Return oil pipeline
• 1 × Water coolant and return kit (6AN / large hose)
• 1 × Turbine gasket kit
• 1 × Balance Report with Anti-Counterfeit Tag

Installation

Condition & Provider

• Condition: Brand New
• Provider: Kinugawa Turbo Systems

Warranty

Kinugawa Turbo Systems offers a 1-Year Trouble-Free Warranty from the purchase date. If your turbocharger fails or has any issue, return it for a free overhaul, recondition, or replacement — no matter the cause.
