APPLICATION
- 10~12 Hyundai Genesis Coupe 2.0T BK1 Theta (Bolt-on to the stock manifold and dump pipe, the compressor housing is 3" and needs modification to fit. )
- 13~14 Hyundai Genesis Coupe 2.0T BK2 Theta (Use the stock BK1 manifold and aftermarket O2 housings like ISR or MXP to fit the turbo, please check the following case study.)

- The maximum power stated for each turbocharger has been calculated based strictly on the choke flow of the compressor map (total turbo capability), representing the potential flywheel power. This product's performance results depend highly on your vehicle’s modifications and tuning/calibration.

CHRA SIZE
- TD05H-16G

WHEEL SPEC
- Compressor wheel: 48.3 / 68 mm
　(The 6+6 blade is better for low-end torque; the 11+0 blade is for top-end speed)
- Turbine wheels: 56 / 49.2 mm
　(3 types available: STD, STS, STS55. Click here to learn more about STS technology.↗)

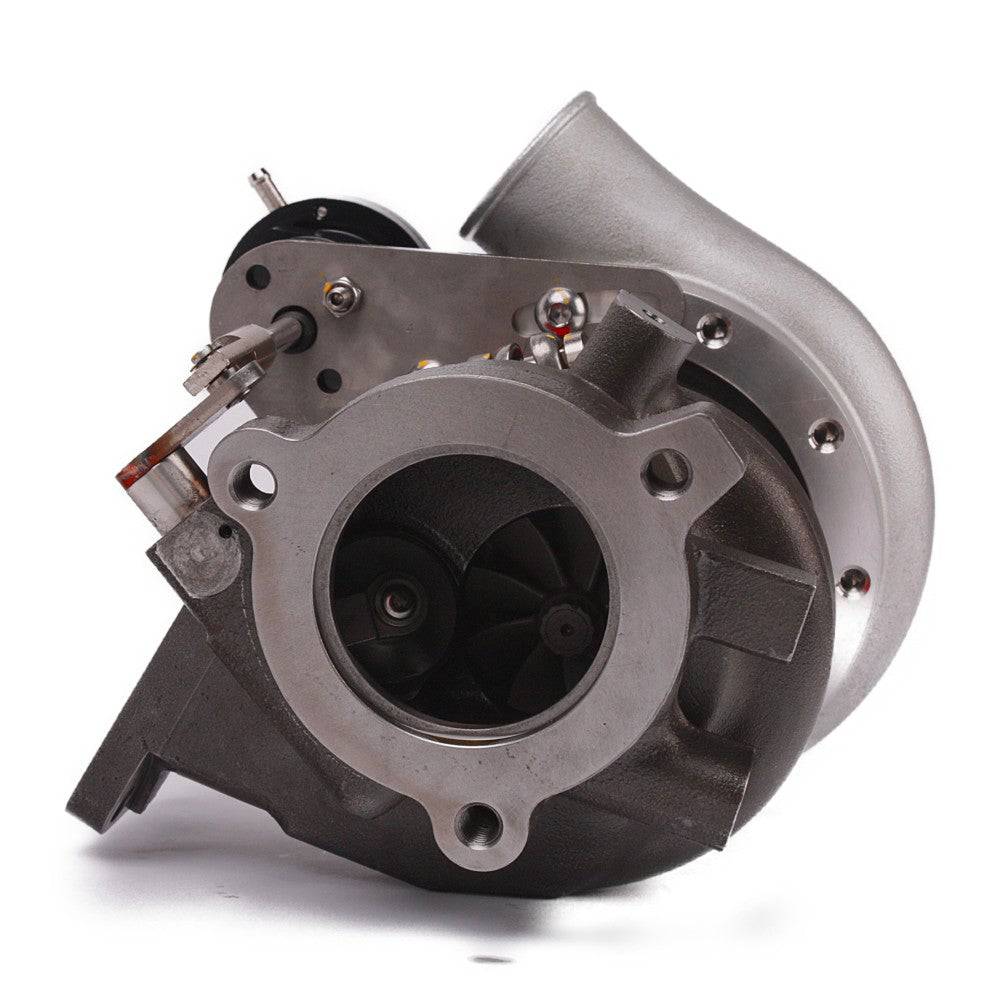

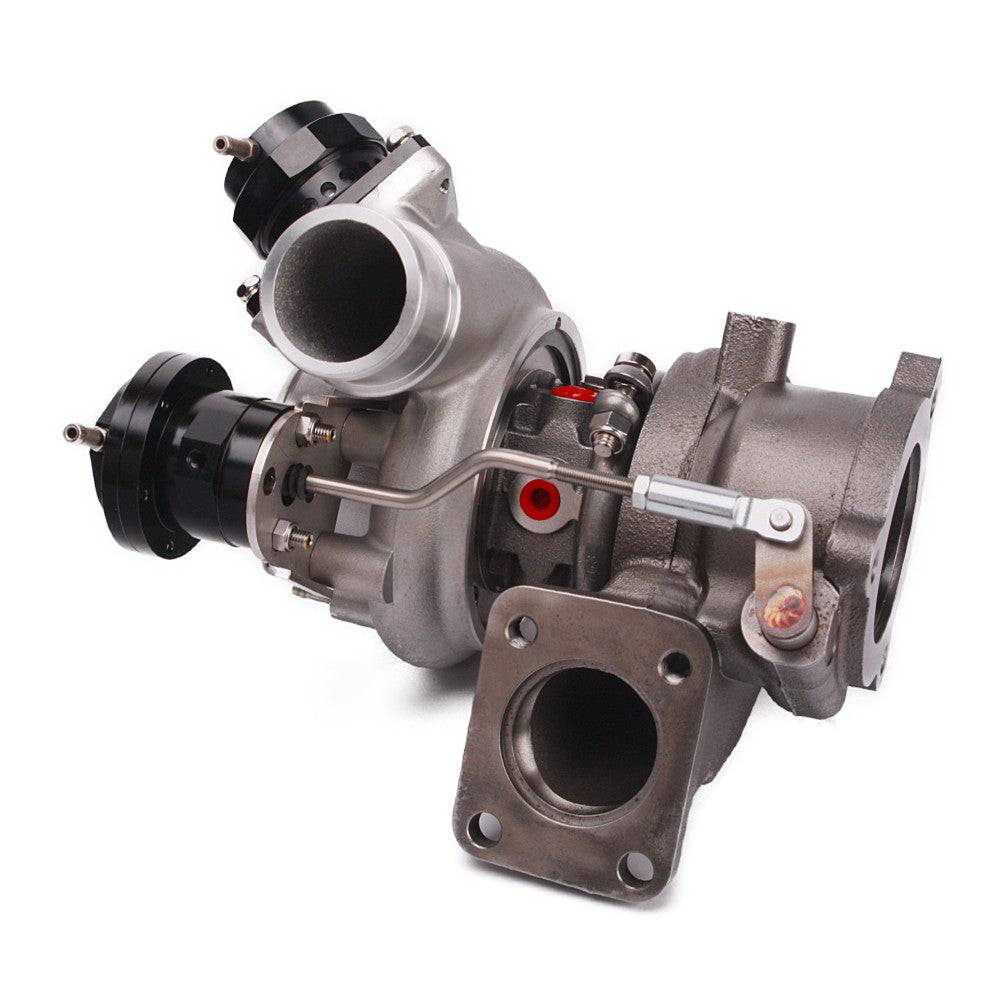

COMPRESSOR HOUSING
- Nozzle Area: AR.60
- Inlet: 3" anti-surge with speed sensor port
- Outlet: 2"
- Anti-surge housing is a good "analog" way of curing part throttle surge issues on big turbo/MBc setups. It's why most really big turbos come with anti-surge housings, to begin with.

TURBINE HOUSING
- Nozzle Area: 8 cm^2 / AR.57

BEARING TYPE
- Journal Bearing with 360-degree performance thrust bearing kit

COOLING TYPE
- Oil and water cooling

ACTUATOR PRESSURE
- 1.0 bar / 14.7 Psi is the default.
- Please add a note or contact us if you need to change to 0.3 bar, 0.5 bar, 0.8 bar, 1.2 bar, 1.5 bar, 1.7 bar, or 2.0 bar actuator.

PRODUCT SITUATION
- Brand New

KIT INCLUDES
- 1 x Turbocharger with adjustable actuator
- 1 x Oil and water kit
- 1 x Gasket set turbine housing in/out
- 1 x Balance report with anti-counterfeit tags↗

Case Study: BK1 2010~2012

Replacement O2 housing (1st catalytic converter pipe) for the 2010-2012 Genesis Coupe 2.0L to free up valuable horsepower! Direct bolt-up to the turbo to the stock manifold and connect to the OEM or aftermarket downpipe.

Case Study: BK2 2013-2014

You can use the stock 2010~12 BK1 manifold and the aftermarket O2 housings like ISR or MXP to convert these turbochargers on 2013~14 BK2. Installed within a few hours with essential hand tools. Bolts onto Bk1 manifold and O2 housing just like factory. Torque Manifold, O2 housing, and turbo to manifold to 40ft-lbs, Coolant lines with barbed fittings bolt on with easy to the factory lines, -4an oil feed line tees right into factory location with a 14mm banjo fitting and a banjo restrictor on the turbo end for proper oil lubrication. High-quality braided lines hold up exceptionally well to high-pressure oil and powerful engine and exhaust heat. They are very trustworthy and reliable parts for not only track days but daily driving.

PROVIDER
- Kinugawa Turbo Systems

Warranty

- For complete peace of mind, Kinugawa Turbo Systems offers a KINUGAWA TROUBLE-FREE WARRANTY for 1 year from the purchase date to the original purchaser. If, for any reason, your turbocharger/s fails or has an issue, you can return it to us for a free overhaul and recondition or replacement depending on availability or the turbo problem. You can be assured that KINUGAWA has covered you no matter the issue.
